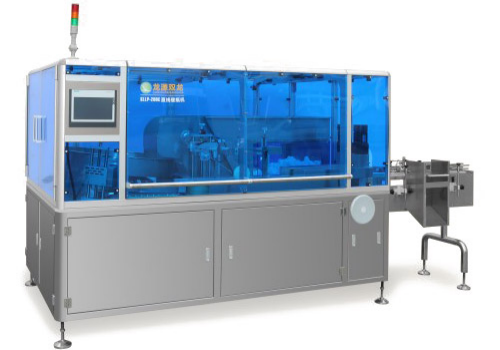

Horizontal bottle unscrambler with air blower SLLP-200
SLLP-200 Integrity of high speed unscrambling and cleaning bottles, the machine is designed with stainless steel housing and Glass enclosures for operator’s safety and protection from dust, accordance with national GMP and FDA standards, which reaches international advanced level.It has Automatic speed Synchronization Setup: put empty bottles in the large hopper.
Main features:
(1) Color Touch Screen with Intelligent Self-Programmed provides ease operation.
(2) Variable speed control

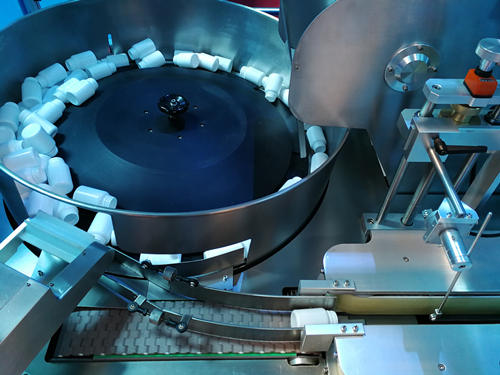

(3) Bottle Orientating assembly is accurate, adjustable and user friendly.
(4) All 304 stainless steel construction to meet GMP standards.

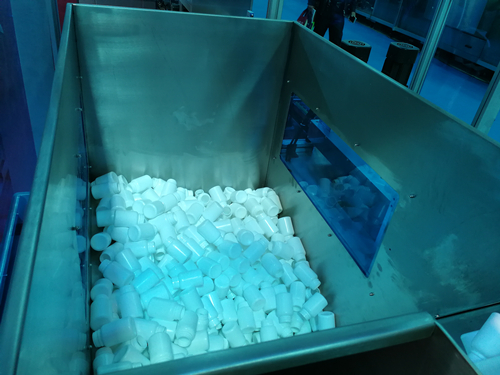

(5) The featuring of large hopper and auto start function avoid frequency filling and reduces labor costs.
(6) Preprogramming PLC control will show all data on the interface panel.
(7) Wide application for round, rectangular and irregular bottles without changing mold parts.
(8)With function of reversing, turning and rejecting waste products automatically, it ensure machine to reach 100% bottle qualified rate.
(9)With double transmission chute, make conveying bottles more smoothly,which ensure bin without accumulation of bottles.
(10) Optional for air blowing cleaner/vaccum suction/enclosure cover

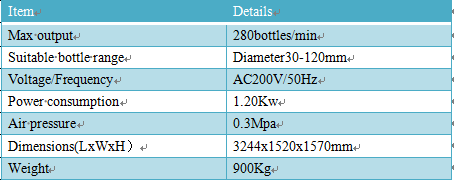

Technical Parameter:
Detailed Construction:
Main Electrical Configuration:
PLC SIMENZ/GERMANY
HMI SIMENZ/GERMANY
INVERTER SIMENZ/GERMANY
